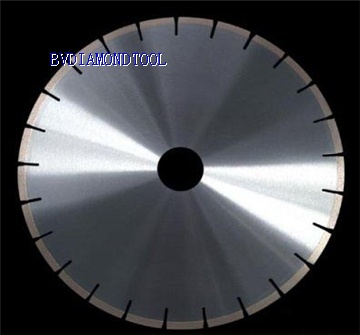

Product name : Diamond Saw Blade for Marble
Item : BVSB-005
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:
Diamond Saw Blade for Marble



Our marble blade are used worldwide from: Italy,Spain, Germany, France, England and of course United States. this blade is guaranteed not to chip your marble surface no matter how exotic.



Features:

1.  Silver brazed diamond saw blades

2.  Our  marble blade are mostly for wet cutting of all kinds of marbles, segmented blade for wet cutting marble. Brazed process gives advantage of re-tipping. We also design small sizes dry cutting marble saw blades



Machinery:  Bridge saw, Stone saw, Angle grinder



Application

Diameter

Segment Height (mm)

Segment Thickness

(mm)

Segment No.

Arbor

(mm)

Marble

250mm(10”)

8/10

2.6

18

50/60

300mm(12”)

8/10

3.0

21

50/60

350mm(14”)

8/10

3.2

24

50/60

400mm(16”)

8/10

3.6

28

50/60

450mm(18”)

10

4.0

32

50/60

500mm(20”)

10

4.0

36

50/60

600mm(24”)

10

4.6

42

50/60

700mm(28”)

10

5.0

50

50/60

800mm(32”)

10

5.4

50

50/60

Other specification can be ordered by customer.
